HRO Rod Seals

NAK Sealing Technologies Corporation is a manufacturer as well as a wholesale exporter, with its own factories located in Taiwan. NAK designs, tests, and manufactures HRO Rod Seals for original equipment OEMs and MROs, custom sealing solutions, and unique requirements. We specialize in achieving consistent results in quality, performance, and costs.
Our core knowledge and technology replaces traditional

HRO Rod Seals

by providing significant performance improvements at affordable pricing for OEM's and MRO’s. Our mission is to support customers in creating value added products for their own markets. If you are interested in our products, please contact us immediately.
  • HRO Rod Seals - HRO

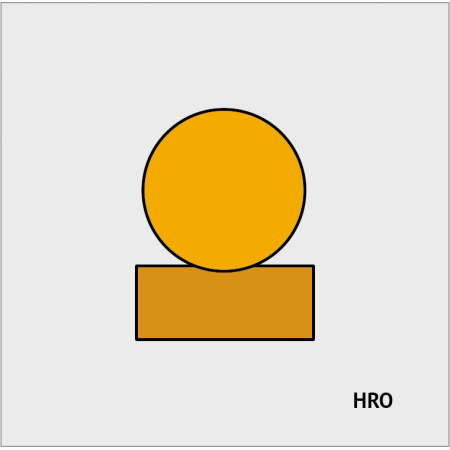

HRO Rod Seals
Model - HRO
Product Description
The HRO Rod Seal has two parts. It is designed as a two-way seal for the rod. It is a PTFE seal and an O ring combined together. PTFE is a very low-friction material, and combining it with the O Ring can be used for a wide range of operations. The HRO Rod Seal works great for the high-speed sliding of hydraulic cylinders.

Material
O Ring – NBR, FKM
Friction Ring – PTFE

Product Advantages
  • According to ISO 5597
  • Good media resistance
  • Low frictional resistance
  • Wide operating temperature range depending on the O-Ring material
  • Very good static and dynamic tightness
  • High-speed sliding

Application
Agricultural equipment, injection molding machines, fork-lifts and loading platforms

Operating Conditions
Media Mineral oils Mineral oils
Material NBR FKM
Pressure ≦35 Mpa ≦35 Mpa
Speed ≦1.5 m/s ≦1.5 m/s
Temperature Range -40°C , +100°C -25°C , +200°C

Gap Dimension
200 Bar 250 Bar 350 Bar
0.6 mm 0.42 mm 0.25 mm

Surface Roughness
  Sliding Surface Groove Base Groove Flanks
Ra 0.2~0.4 µm ≦1.6 µm ≦3.2 µm
Rz 0.8~1.6 µm ≦6.3 µm ≦12.5 µm
NAK Sealing Technologies Corporation
HRO
none
999999999 http://schema.org/InStock USD 2020-12-31
90out of 100based on 100user ratings
Enquiry Now
Products List
NAK Sealing Technologies Corporation
To find and shop the best HRO Rod Seals, you need to know about the highest quality of HRO Rod Seals manufacturer, supplier, wholesaler, distributor, OEM and ODM from a factory in Taiwan

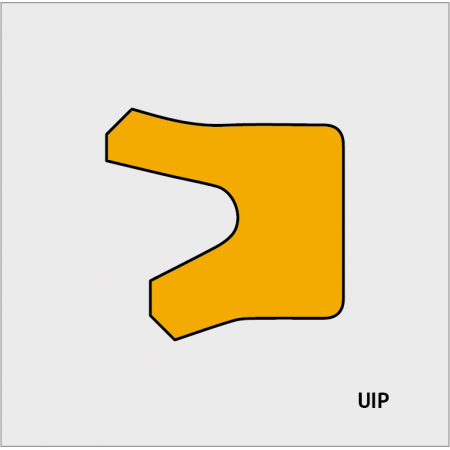

UIP
none
999999999 http://schema.org/InStock USD 2020-12-31
90out of 100based on 100user ratings
Product Description The UIP Rod Seal is a one-way, U-shaped rod seal with an asymmetrical design that keeps dirt out to protect the rod. The inner diameter of the seal has a shortened lip which increases the cross-sectional area. This seal is both an excellent dynamic as well as static seal. It can withstand pressures of up to 40Mpa.  Material Polyurethane Product Advantages According to ISO 5597 Good media resistance Excellent wear resistance Wide operating temperature range Very good static and dynamic tightness Application Earth-moving machinery, agricultural equipment, injection molding machines, fork-lifts, loading platforms and standard cylinders. Operating Conditions Media Mineral oils Pressure ≦40 Mpa Speed ≦0.5 m/s Temperature Range -40°C , +100°C Gap Dimension 140 Bar 210 Bar 350 Bar 0.27 mm 0.16 mm 0.06 mm Surface Roughness   Sliding Surface Groove Base Groove Flanks Ra 0.2~0.4 µm ≦0.8 µm ≦3.2 µm Rz 0.8~1.6 µm ≦3.2 µm ≦12.5 µm
NAK Sealing Technologies Corporation
To find and shop the best HRO Rod Seals, you need to know about the highest quality of HRO Rod Seals manufacturer, supplier, wholesaler, distributor, OEM and ODM from a factory in Taiwan

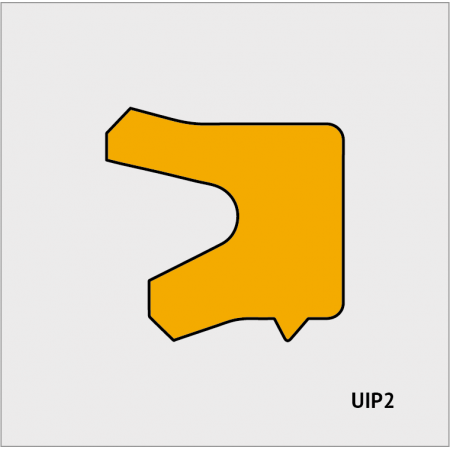

UIP2
none
999999999 http://schema.org/InStock USD 2020-12-31
90out of 100based on 100user ratings
Product Description The UIP2 Rod Seal is a one-way, U-shaped rod seal with an asymmetrical design that not only has the shortened lip on its inner diameter similar to the UIP, but also comes with an additional sealing lip on its outer diameter. The second sealing lip provides additional protection, keeping dust and other contaminants from entering the front sealing lip. This helps to protect the mechanism, and prolongs the service life of the cylinder. The UIP2 Rod Seal is mostly used in construction and earth-moving machinery. Material Polyurethane Product Advantages According to ISO 5597 Good media resistance Excellent wear resistance Wide operating temperature range Very good static and dynamic tightness Secondary sealing lip provides additional protection against the ingress of dirt particles Application Earth-moving machinery, construction machinery, agricultural equipment, injection molding machines, fork-lifts, loading platforms and standard cylinders. Operating Conditions Media Mineral oils Pressure ≦40 Mpa Speed ≦0.5 m/s Temperature Range -40°C , +100°C Gap Dimension 140 Bar 210 Bar 350 Bar 0.25 mm 0.15 mm 0.08 mm Surface Roughness   Sliding Surface Groove Base Groove Flanks Ra 0.2~0.4 µm ≦0.8 µm ≦3.2 µm Rz 0.8~1.6 µm ≦3.2 µm ≦12.5 µm
NAK Sealing Technologies Corporation
To find and shop the best HRO Rod Seals, you need to know about the highest quality of HRO Rod Seals manufacturer, supplier, wholesaler, distributor, OEM and ODM from a factory in Taiwan

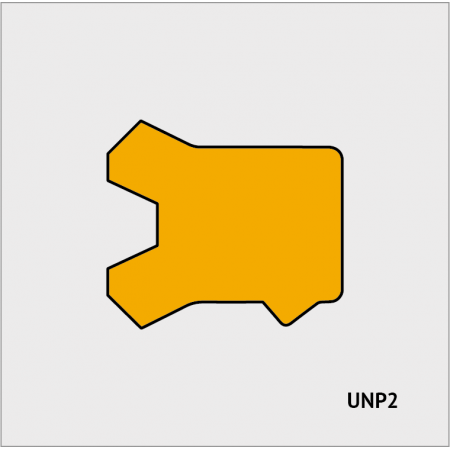

UNP2
none
999999999 http://schema.org/InStock USD 2020-12-31
90out of 100based on 100user ratings
Product Description The UNP2 Rod Seal is a one-way, U-shaped rod seal has two symmetrical sealing lips. They are designed to fit the small grooves within hydraulic cylinders of limited space. The second sealing lip provides additional protection, keeping dust and other contaminants from entering the front sealing lip. This helps to protect the mechanism, and prolongs the service life of the cylinder. The UNP2 Rod Seal performs well in lower pressure settings. This kind of seal is perfect for fork-lifts, injection molding machines, agricultural equipment, and so on. Material Polyurethane Product Advantages According to ISO 5597 Good media resistance Excellent wear resistance Wide operating temperature range Very good static and dynamic tightness Secondary sealing lip provides additional protection against the ingress of dirt particles Fit small grooves heights Good sealing performance even at lower pressures Application Construction machinery, agricultural equipment, injection molding machines, fork-lifts, loading platforms and standard cylinders. Operating Conditions Media Mineral oils Pressure ≦40 Mpa Speed ≦0.5 m/s Temperature Range -40°C , +100°C Gap Dimension 140 Bar 210 Bar 350 Bar 0.25 mm 0.15 mm 0.08 mm Surface Roughness   Sliding Surface Groove Base Groove Flanks Ra 0.2~0.4 µm ≦0.8 µm ≦3.2 µm Rz 0.8~1.6 µm ≦3.2 µm ≦12.5 µm
NAK Sealing Technologies Corporation
To find and shop the best HRO Rod Seals, you need to know about the highest quality of HRO Rod Seals manufacturer, supplier, wholesaler, distributor, OEM and ODM from a factory in Taiwan

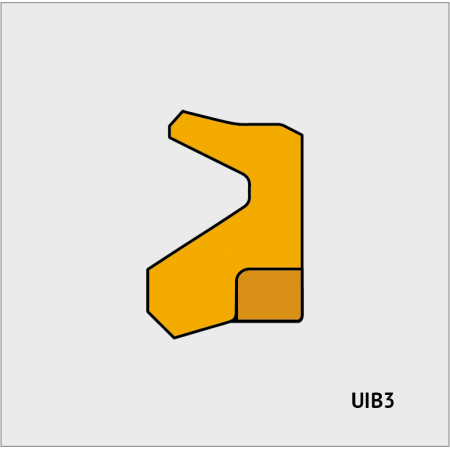

UIB3
none
999999999 http://schema.org/InStock USD 2020-12-31
90out of 100based on 100user ratings
Product Description The UIB3 Rod Seal is a seal that has two parts. There is a primary and secondary ring. The secondary ring provides additional cushioning and back-up support due to the pressures from the pistons. The primary ring is a PU seal and the secondary back-up ring is nylon. The inner diameter lip (of the primary ring) is designed with small gaps that reduce the back pressure, and prevent pressure accumulation inside the seal. This design protects the seal so that it can continue to protect the cylinder. The UIB3 Rod Seal set is always used in a sealing system in combination with U-shaped rod seal (e.g. UIP). Material Polyurethane Product Advantages According to ISO 5597 Good media resistance Excellent wear resistance Very good static and dynamic tightness Prevent pressure accumulation between primary and secondary seal Protection against extrusion through secondary sealing ring Application Earth-moving machinery, construction machinery, agricultural equipment, injection molding machines, fork-lifts, loading platforms and standard cylinders. Operating Conditions Media Mineral oils Pressure ≦50 Mpa Speed ≦1 m/s Temperature Range -40°C , +100°C Gap Dimension 350 Bar 420 Bar 500 Bar 0.4 mm 0.2 mm 0.125 mm Surface Roughness   Sliding Surface Groove Base Groove Flanks Ra 0.2~0.4 µm ≦0.8 µm ≦3.2 µm Rz 0.8~1.6 µm ≦3.2 µm ≦12.5 µm
